Capsense Keypad
Capacitive sensing button or keypad
These keypad can save a lot of jobs on the control panel because a single piece of the PCB can hold as many as 50 buttons with any size and just depend on the array of these buttons, shapes, colors will offer the very attractive appearance and easy to use, the keypad can have LED mounted behind to help indicating the alarm mode or selected mode as wish. The keypad can have joystick design with arrows showing the 8 directions. For the interface wise the keypad can use LAN, RS232, RS485, RS422, bluetooth, WiFi... or any confortable way to save the wires to the PLC, computer, controller etc.
Capsense Control Panel
The first capsense board that we experimented, with 4 buttons on the PCB and a proximity sensor function. This capsense keypad is multi touch featured.

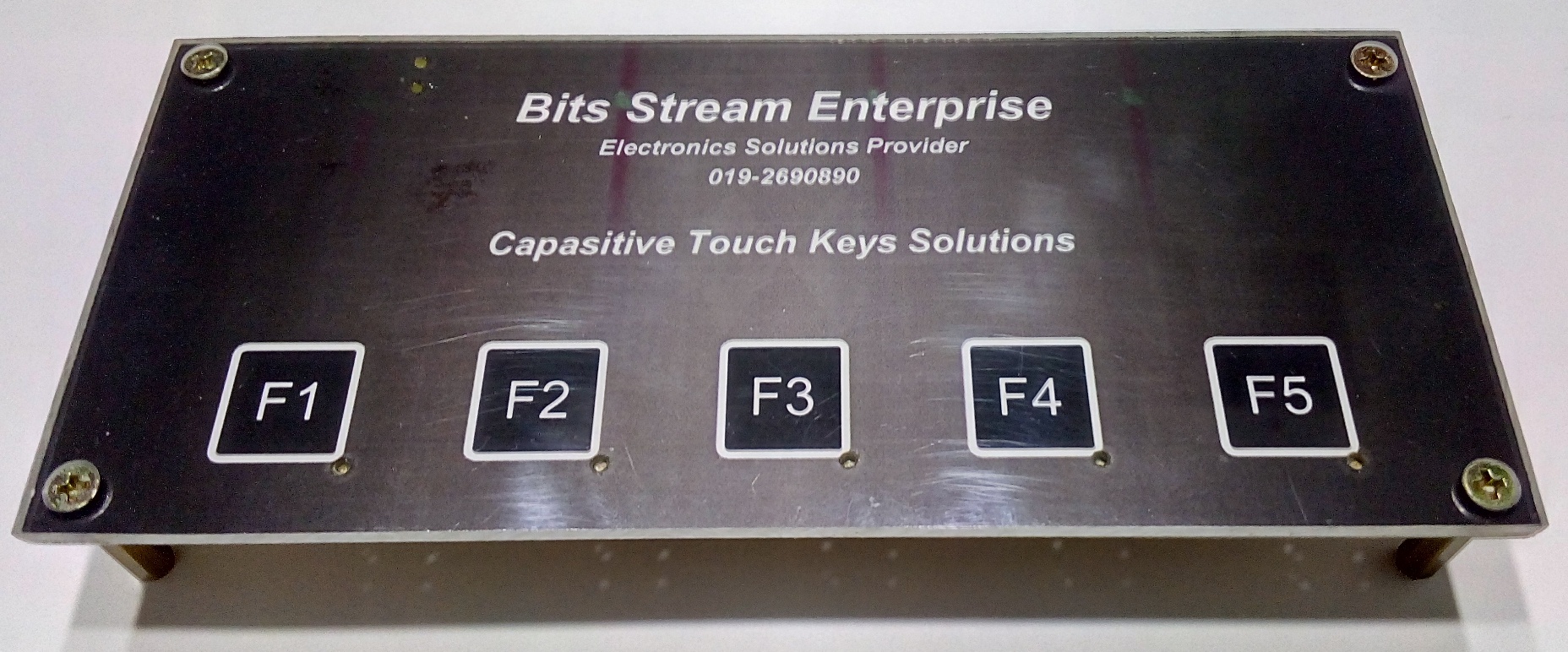

5 buttons capsense PCB module
The best way to avoid mechanical buttons breakdown after the life cycles achieved with its limit is to use the capsense functions as buttons to replace the mechanical limit problems. The capsense product that shown here to offer the touch with wearing hand glove to the buttons.
The capsense button keypad is able to interface with the computer or whatever controller, here we shows the button pressed signals are sending quicky to the computer through RS232, we may help you to build the RS485, LAN, WiFi, bluetooth or any interface method we know.
The capsense button keypad design is operated by many voltage level, because of the needs energy travel far inside the long cable, we choose 12V operated and easy to backup the power when AC power fail.
The capsense keypad can be modify the latch or momentary touch, latch mode is the button is lock and momentary mode is button will release while let go the finger.
Capsense interact with human
exhibition interactive game in exibition
Bespoke Geometric Designs
Break free from rectangular constraints. Our capacitive sensing technology adapts to any shape, size, or configuration your product demands. Whether you need circular arrays, curved surfaces, or completely custom geometries, we design and manufacture touch interfaces that perfectly match your aesthetic and functional requirements.
