Human Machine Interface

Touch LCD

For the best presentation of message and control, the touch LCD plays a great role in the human and machine interface areas. Due to the performance of the LCD quality and its hardware performance improvement, touch LCD is now mostly made from TFT color LCD or OLED LCD. The results highly satisfy most of the industrial application needs.

Jar Tester HMI

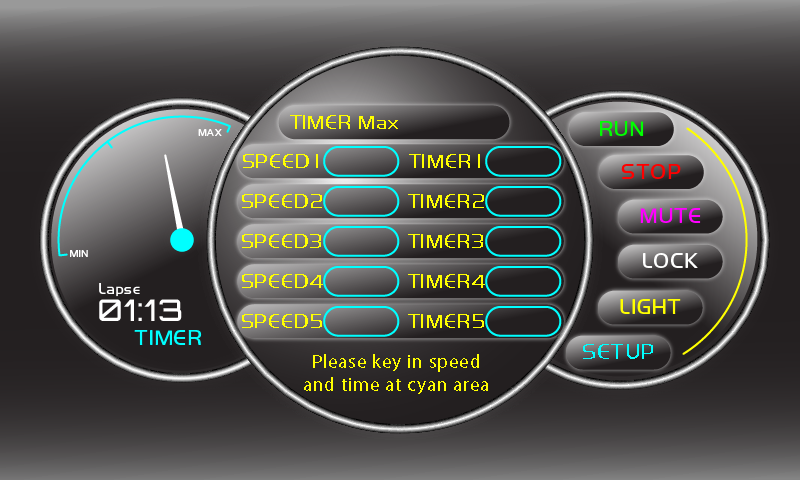

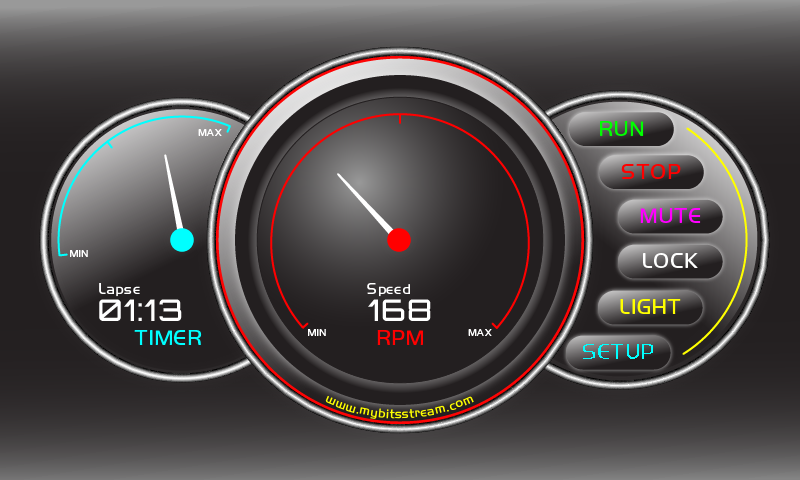

Jar Tester HMI Interface Design 1 Jar Tester HMI Interface Design 2

Multi Pumps Control System

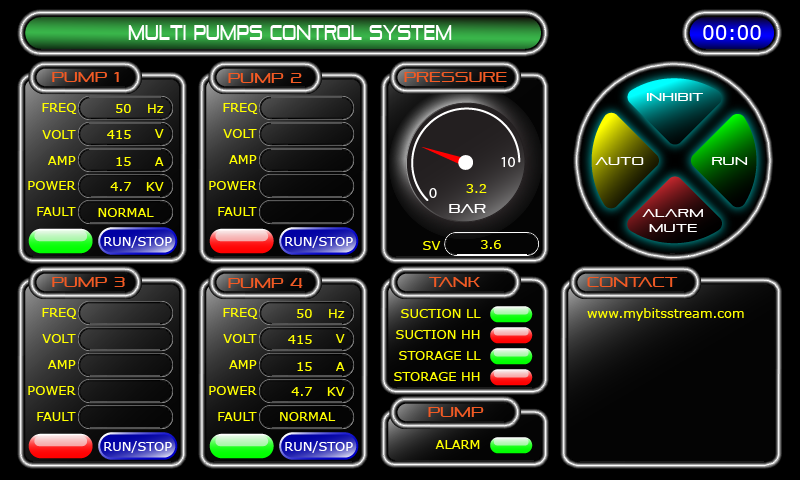

Multi Pumps Control System Interface

Air Quality

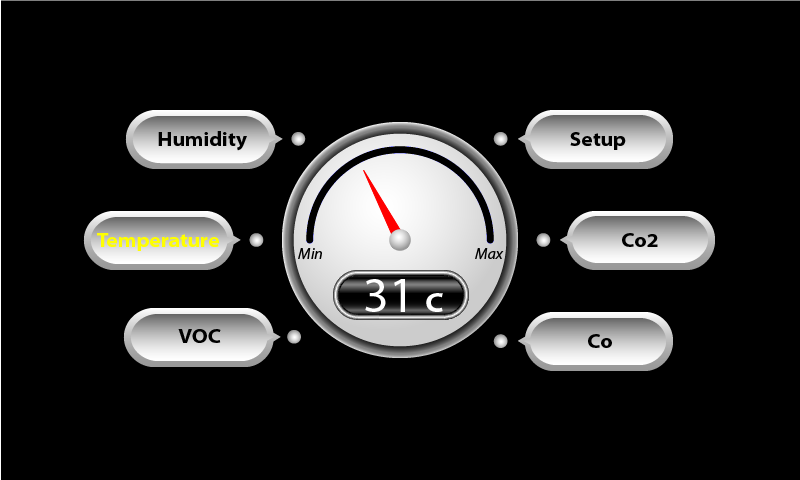

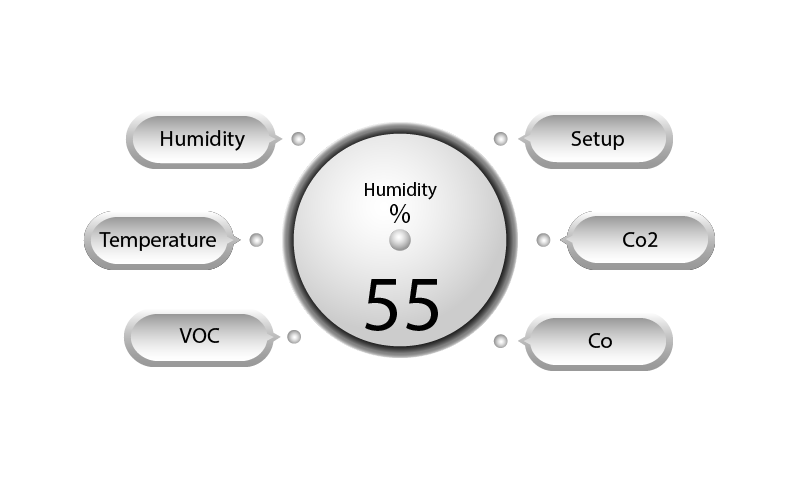

Air Quality Interface Design 1 Air Quality Interface Design 2

Icon Button

Friendly paging 2.4 inches HMI touch LCD design, pictures Icons are organized by Adobe Illustrator graphical software editor

Keypad Design HMI

Portrait design of the 2.4 inches touch LCD act as the keypad, interface with PC, the monitor shows the data receive on the computer monitor screen when LCD keypad is pressed.

5 inches HMI

A larger TFT touch LCD compare with 2.4inch shown is apply as keypad

The demo shows 2.4 inches TFT LCD show the trending of the data recieved form the controller, vary the analogue trimmer that change the data and shown on the LCD with line.
